ticket readers

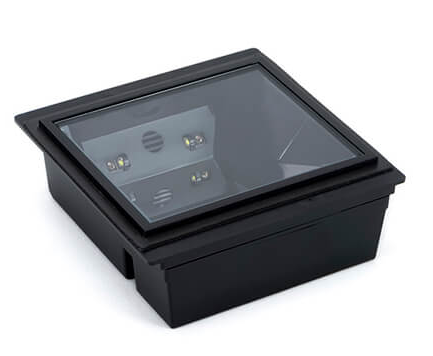

The ATR110 is a barcode reader with optional NFC contactless capabilitiesis a ‘one-box’ solution that helpsprocess a wide range of electronicticketing across a variety of media. The device is designed to read allpopular linear, PDF417 and 2Dbarcode symbologies, including QRand Aztec codes, from smartphones,tablets and printed paper documents. The ATR110’s advanced recognitionbarcode imager is omnidirectionaland has near-zero latency. Itcaptures barcodes within a fractionof a second of presentation in any orientation.

The TripTick™ 210 ticket reader is part of HID's ticket reader portfolio. The multimedia device can scan RFID/NFC tickets and 1D/2D barcodes and QR codes from mobile phones, tablets, wearables, contactless cards and paper in any orientation. TripTick offers an especially intuitive and quick interface for data reading and writing. The ticket reader works with all popular contactless cards — including MIFARE® (Classic®, Ultralight®, DESFire®, Plus) and Calypso®. The TripTick barcode and ticket reader offers operators the ultimate no-nonsense installation. Its small footprint, low profile, slot-in design enables easy integration into kiosks, ticket machines, turnstiles and access gates. Furthermore, its rugged water-resistant construction with no moving parts enables it to withstand years of indoor and outdoor public access use. An option for Power over Ethernet (PoE) allows installation without a dedicated power supply. Optimized imaging ensures read reliability and high-speed performance capturing and decoding all popular linear, PDF417 and 2D symbologies.

Multi-functional ticket reader: The TripTick 220 reads all standard 1D/2D barcodes, NFC/RFID tickets and contactless payments in one compact device. Payment processing: EMV Level 2 certified for secure contactless payments via Visa, Mastercard, Amex, JCB, Discover and Interac. Meets PCI and SRED compliance standards. Fast barcode reading: High-speed scanning captures barcodes presented at multiple angles or orientations with reliable decoding performance. Easy integration: Compact, low-profile design makes it easy to integrate in kiosks, turnstiles and access gates. Water-resistant construction with no moving parts ensures reliable outdoor operation.

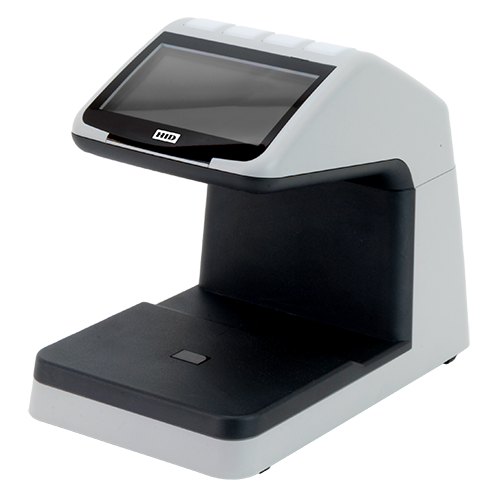

The BGR700, part of HID's ticket reader portfolio (formed from HID's acquisition of Access-IS) is a robust, contactless boarding gate reader for 2D barcoded boarding passes (BCBPs). The innovative device has a large reading aperture to allow truly intuitive use with all media types, including smart watches. Omnidirectional face up reading enables airport staff to read boarding passes rapidly for efficient passenger processing. Speed of transaction is enhanced by near-zero latency, meaning barcodes and tickets read instantly on presentation. Additional features to ensure fast and intuitive passenger processing include a color LCD display for passenger information, bright green and red LED visual indicators, a user-programmable audio beep to confirm successful data capture, a receipt printing port and an integrated on/off switch.

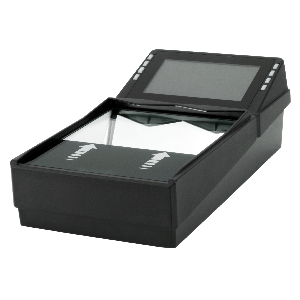

Far from being a standard boarding gate reader, the multi-functional BGR750 is a modern, flatbed device suitable for efficient passenger processing at airport check-in, pre-security desks and boarding gates. This versatile device, part of HID's ticket reader portfolio (formed from HID's acquisition of Access-IS), is available with or without a color LCD screen and is suitable for desktop or embedded use. In use, the large scanning window, wide viewing angle and depth-of-field make for lighting fast detection and reading of Bar Coded Boarding Passes, presented face-down. BGR750 is also compatible with all media types including smart devices. BGR750 can be supplied equipped for contactless use and the scanning window allows for optional passport MRZ reading. The color screen, instructional icons, twin banks of four bright LEDs and loud audio sounder all enhance the user experience. A wide range of configurations are available for connection to Common Use Terminal Equipment (CUTE®) or dedicated systems. To maintain optimum functionality and longevity, the device's firmware can easily be updated.
